FleetVu’s 360 Advanced Sensor system includes an ultrasonic ECU, four front sensors, four left sensors, four right sensors, and four rear sensors, as well as an LED display. It detects targets using ultrasonic sensors and transmits the detected data to the ECU for processing. The display shows the color and audible sounds which depict corresponding sounds in reference to the distance of obstacles nearby. FleetVu 360° Advanced Sensors enhance driver performance and increases driver safety when navigating, reversing or driving. 360° FleetVu.pdf

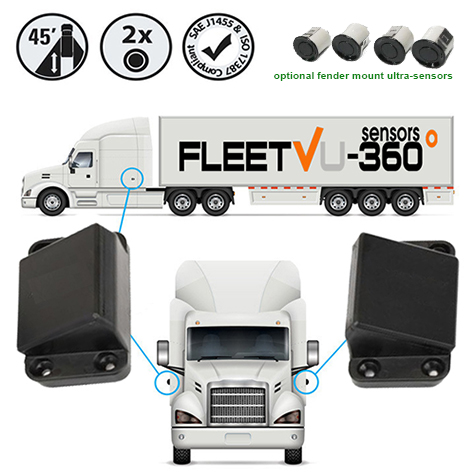

Dual Layer C93 w/ Ultra-sonic sensors
Unparalleled Multi Layer protection-The FleetVu C93-US4 combines cutting-edge 77GHz radar Blind Spot Detection. Providing an unmatched 90 feet of protection plus Ultra-sonic sensors mounted on the fenders which Eliminate left & right front corner blind spots. For the industry’s only dual-layer blind spot and lane change protection. Protect your fleet, your drivers, and your business with Exclusive FleetMaster technology.
- NEW PRODUCT – Dual Layer 77GHz + Ultra-sonic Sensors in 1 Solution
- EXCLUSIVE PROVIDER – Available only through FleetMaster
- No BLIND-SPOTS – Eliminates left & right front corner blind spots
Microwave C93 Sensors
Description:
RADAR BLIND SPOT DETECTION SYSTEM- 77GHZ
PRODUCT HIGHLIGHTS – FleetVu User-Install Guide
- Up to 90′ Feet Detection Range with 77GHz Range Sensors
- Available w/Ultra-Sonic Fender Mount Sensors
- 45FT Warning Zone – IP67 Rating Sensors
- Long Detection Range – Between 60ft and 82ft for trucks, 50 ft for cars, 33ft for motorcycles, and 23ft for pedestrians
- Easy Sensor Installation – Surface Mounted
- Visual LED Alerts Mount On A-Pillar
- Compliant with SAE J1455 (Electronic design for Heavy Duty vehicles) and ISO 17387:2008 (Lane change decision aid systems performance requirements)
- Fail Safe Alerts Driver Of System Failure
Waterproof Backup Sensor Reversing System
The RVS-112-W Vehicle Reversing Aid is an automatic backup ultrasonic echo location sonar technology the system is activated when the driver engages reverse gear. A 4 zone variable audio pulse alerts the driver of potential obstacles. This is especially helpful for detecting docks or moving objects. These intelligent sensors automatically ignore stationary, permanent objects, such as truck steps, up to 30cm away. This gives you flexibility for installation location. 112 Install Manual
Note: In addition to ground and reverse (trigger) power, you must also connect the RVS-112-W to a constant power source.
Ultrasonic Wireless Flush:
Rosco’s Ultrasonic-Wireless-Flush Mount forward and backup sensor kits are ideal for high bumper vehicles. The sensors automatically detect within 8’ the distance between high bumpers and rear obstructions. Drivers receive a digital warning on the LCD display panel.
Kit Features:
- Wireless communication between control box/display unit.
- (4) Sensors Bars display direction/distance of obstruction.
- Direction of obstruction indicated if left/middle/right,
- Digital LED display Audible alarm.

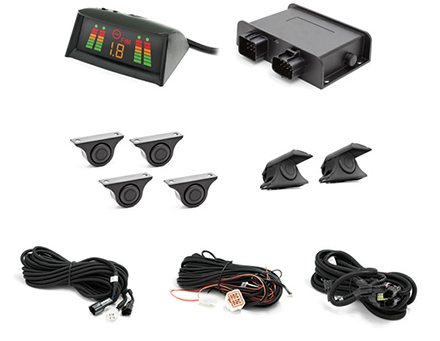

HD Hard-Wired Bumper Mounted Sensor Kit:
The BSSK4000 hard-wired Backup Sensor System is a new 6 sensor kit for buses, trucks and large vehicles. The heavy-duty kit is fully sealed, weather resistant, and consists of 4 bumper sensors, 2 roof sensors, a driver display, and an ECU. The ultrasonic sensor technology detects the distance between the vehicle and rear obstructions. The distance is indicated on the digital driver display and alerts the driver with escalating audible and visual alerts when the vehicle is too close to an object.
SenseVue™ 360° Surround System w/ LED Display:
SenseVue™ 360 Advanced Sensor system helps utility vehicle drivers perform incident-free, low-speed maneuvers around stationary obstacles. With customization at every level, operators can choose up to 16 sensors, set detection distances up to 8’ away, and program Alert/Warning/Danger zones to suitable ranges.
The Speed Shut-off feature (also customizable) ensures function only when needed. SenseVue™ is compatible with specific RVS systems, including our inView 360° line.
These IP69 waterproof-rated sensors can be installed externally on vehicles and function even in extreme weather. SenseVue Manual
