360° HD Surround vision:
driver assist 360° surround video-increase performance
FleetVu-Ultra "Wide-view":
150° & 170° wide-view solutions
FleetVu 170° “wide-view” cameras enhance your drivers performance with solutions that are designed to monitor and record high-resolution video data. The “wide-view” cameras are built and compatible with 720p/1080p Video solutions. FleetVu Cameras provide high-grade AHD- 150° and 170° views up to 1920 resolution to record and can assist your driver with an in-cab monitor out on the road.

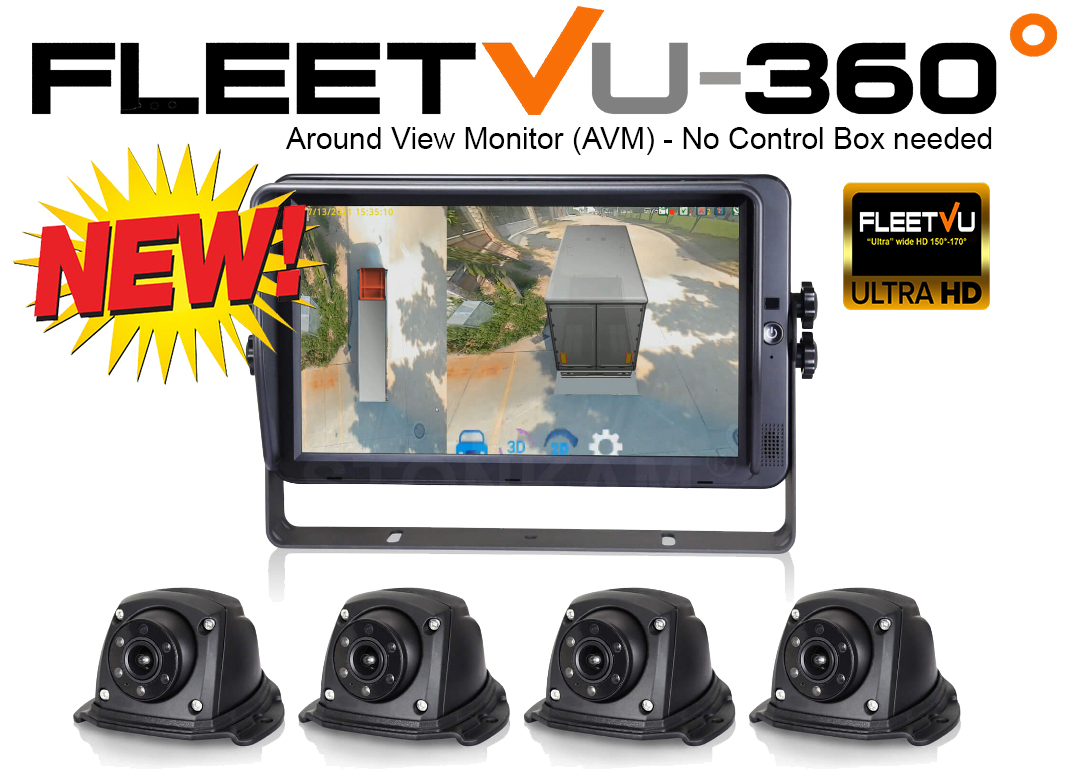

FleetVu-360° driver vision stitches 4-6 video feeds together in real-time to provide your driver with a 360° bird’s-eye-view of the vehicle in real time. Which reduces Blind-spots and enhances your drivers safety and performance out on the road.
6ch. 360° HD-SURROUND:
FleetVu 360° 6-channel 1080P HD Surround Panoramic Imaging System supports input from 6 wide-angle HD cameras and is Compliant with UN ECE R151+R159, R158 regulations. It meets the requirements of BSIS/MOIS/RVCS regulations, eliminating side, front and rear blindness of large vehicles. The system features Integrated Pedestrian Detection, LDW (Lane Departure Warning), FCW (Forward Collision Warning), BSD (Blind Spot Detection), and DMS (Driver Monitoring System). This system can provide an 360° panoramic Birds-eye view and is suitable for articulated buses, cranes, haulers, long trailers, refuse trucks, container trucks, and fire trucks. With strong recording functions, it provides 512GB up to 2TB large capacity SSD video storage.
REAL-TIME DRIVER ASSISTANCE + RECORDING + VIDEO TELEMATICS:
FleetVu 360° driver vision provides drivers with a top-down view of the vehicle to give drivers real-time 360º vehicle awareness. The result: ZERO blind spots – making parking, backing-up and maneuvering of any vehicle in tight spaces effortless. FleetVu 360°delivers: HD 185º camera vision, left and right blind view cameras automatically turned on by turn signals, and automatic back-up camera when in reverse. 360º surround solutions are available as a stand alone or can be configured onto your current “Live” fleet network* Additional Aux Camera options for road facing, cab interior, cargo/hopper interior, bus interior, or any other operational function views are available.
4 systems in 1 solution:
- Birds Eye 360 View that delivers real time NO BLIND SPOTS to you drivers on ANY tractor-trailer, box-truck, front loader, side loader, rear loader, roll-off, and street sweepers.
- Left & Right Side Blind Spot side view triggered by turn signals addressing the drivers concerns of making safe turns and lane changes.
- 180 Degree View Back up camera with programmable grid lines to optimize every specific installation so the driver knows where the back end of the vehicle really is.
- 180 Degree Front View Camera for tight space maneuvering of commercial vehicles.

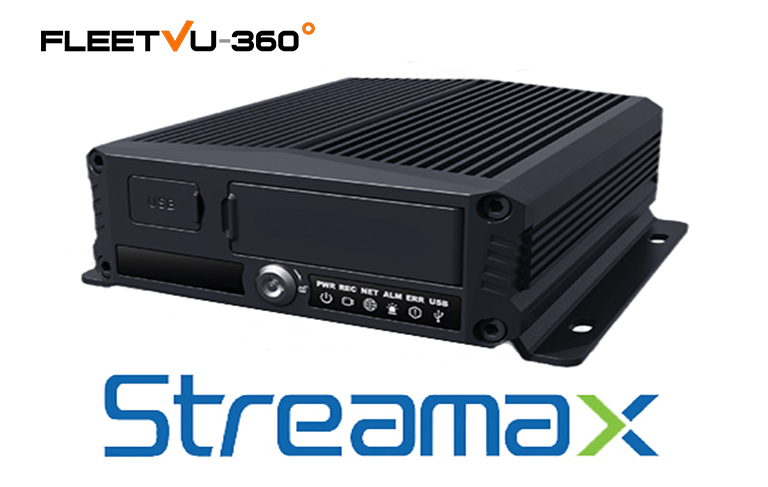

- Built-in 4 channel MDVR recording for event capture, risk management and legal.
- Additional 4 camera inputs for optional in-cab cameras, bin or any other specific operational needs.
- Optional Cellular +GPS module for video telematics connectivity for FMS portal live view, cloud storage and managed video review services.
